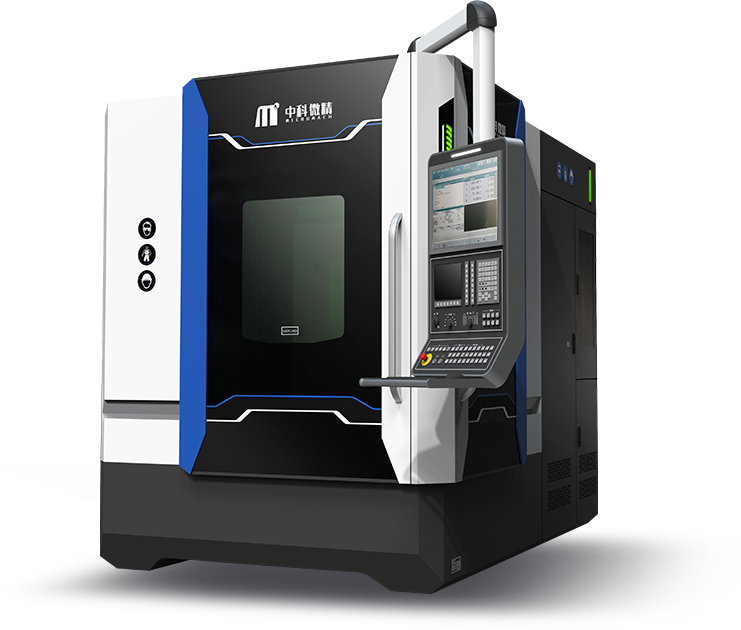

| Machine tool travel (X/Y/Z axis)(mm) | 900/800/700 |
| B-axis (compound head tilt) (rotational range)(°) | ±135 |
| C1-axis (rotating worktable) (rotational range)(°) | Nx360 |
| Positioning accuracy (X/Y/Z axis)(mm) | 0.010/0.010/0.010 |
| B-axis (compound head tilt) (positioning accuracy)（″） | 20 |
| C1 axis (rotary table)(positioning accuracy)（″） | 20 |
| Repeated positioning accuracy (X/Y/Z axis)(mm) | 0.005/0.005/0.005 |
| B-axis (compound head tilt) (repeatability)（″） | 15 |
| C1 axis (rotary table)(repeatability)（″） | 15 |
| Short pulse laser average power(w) | ≥50 |
| Short pulse laser pulse width(fs) | ≤600 |
Average power of long pulse laser(w) | 1500 |
| C1 Table diameter（mm） | 360 |
| C1 Maximum load of the workbench（kg） | 150 |
| Equipment weight（kg） | 9000 |
| Equipment dimensions (mm) (WxDxH) | 2520X4130X3060 |
