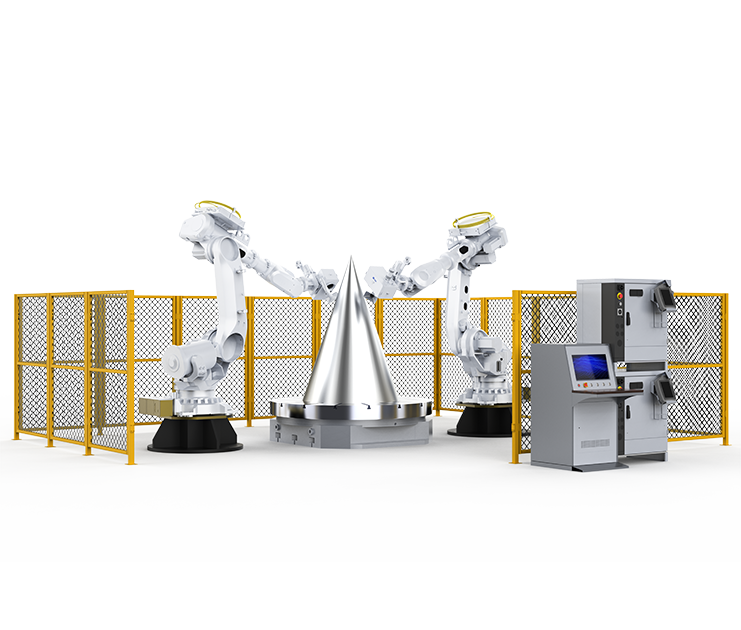

MicroEtch 270R

Laser etching equipment for mechanical arm cleaning/roughening

Manual Download

technical advice

product overview

The equipment uses a high-power nanosecond laser to process complex curved surfaces through techniques like segmented modeling and parallel light projection. It is mainly used for efficient laser processing of microstructures on flat and curved parts, suitable for surface roughening, paint removal, coating removal, surface cleaning, and texturing of various materials including stainless steel, aluminum alloy, carbon steel, manganese steel, high-temperature alloys, and composite materials.

function characteristics

采用高性能纳秒光纤激光器，刻蚀工艺成熟，性能稳定；

具备大型复杂三维不可展开曲面大幅面毛化加工功能；

采用高效激光并行技术，大幅度提升加工效率；

具备自动对焦及同轴视觉功能，辅助设备进行定位对焦；

采用高精度工业机械臂，可保证机械臂运动轨迹最优化，保证设备及人员安全；

完全自主研发的图形预处理软件、可实现大幅面曲面图形精确分块，满足加工工艺需求；

避免人工编程，操作简单，整个加工过程完全自动化；

具备机器人加工仿真功能，可实现离线碰撞仿真检测；

设备支持单/双机器人协作加工模式，可灵活根据零件形状进行编程控制。

Parameter indicators

Robot arm reach (mm)	2700
Robot arm load capacity (kg)	120
Robot arm repeatability (mm)	±0.05
Rotary table travel (°)	0-360
Turntable load (kg)	12000
Average Laser Power (w)	500
Single pulse energy (mj)	2
Wool efficiency (m/h)	2
Maximum workpiece size (mm)	Φ1800X2000
Equipment footprint dimensions (mm) (WxDxH)	6500X5000X4000
