The Panther-Eye M1000 is a specialized cooling hole inspection device for aero-engine blades. It uses optical AI confocal fusion technology to achieve high-precision measurements of cooling holes. The measurement content includes hole diameter, location, angle, spacing, and permeability detection for round and non-standard holes. It supports automated production line integration for fully automated intelligent inspection. The current version measures hole diameter, location, and angle, as well as shape and contour parameters for non-standard holes. It also inspects key blade areas. Simple and efficient operation makes it the top choice in cooling hole inspection.

01

High-quality hole processing; complex curved surface multi-hole processing
02

Efficient, high-precision mass hole processing on flow control and grid plates
03

Micron-level inverted conical fuel injection holes in automotive fuel injectors
04

High-quality, efficient drilling in flexible ceramics, PCBs, FPCs, sapphire, glass, and IC substrate

Results Display

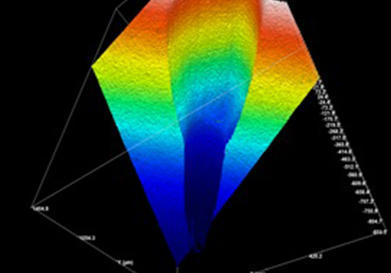

Non-standard hole inspection

aperture±0.01mm

Location degreeΦ0.04mm（±0.02）

Angle±0.1°

Machine stroke (mm)800*1200*700

Turntable travelA：±110°；C：±360°

Linear axis positioning accuracy0.005mm

Linear axis repeatability0.003mm

Rotary axis positioning accuracyA：8‘’；C：8‘’

Rotary axis repeatabilityA：4‘’；C：4‘’

Rotary table load capacity20KG

Maximum workpiece size (mm)400*400

Equipment footprint (mm)2600(L) x 4100(W) x 3600(H)

Industry Applications

aviation
aviation
Car
Medical
